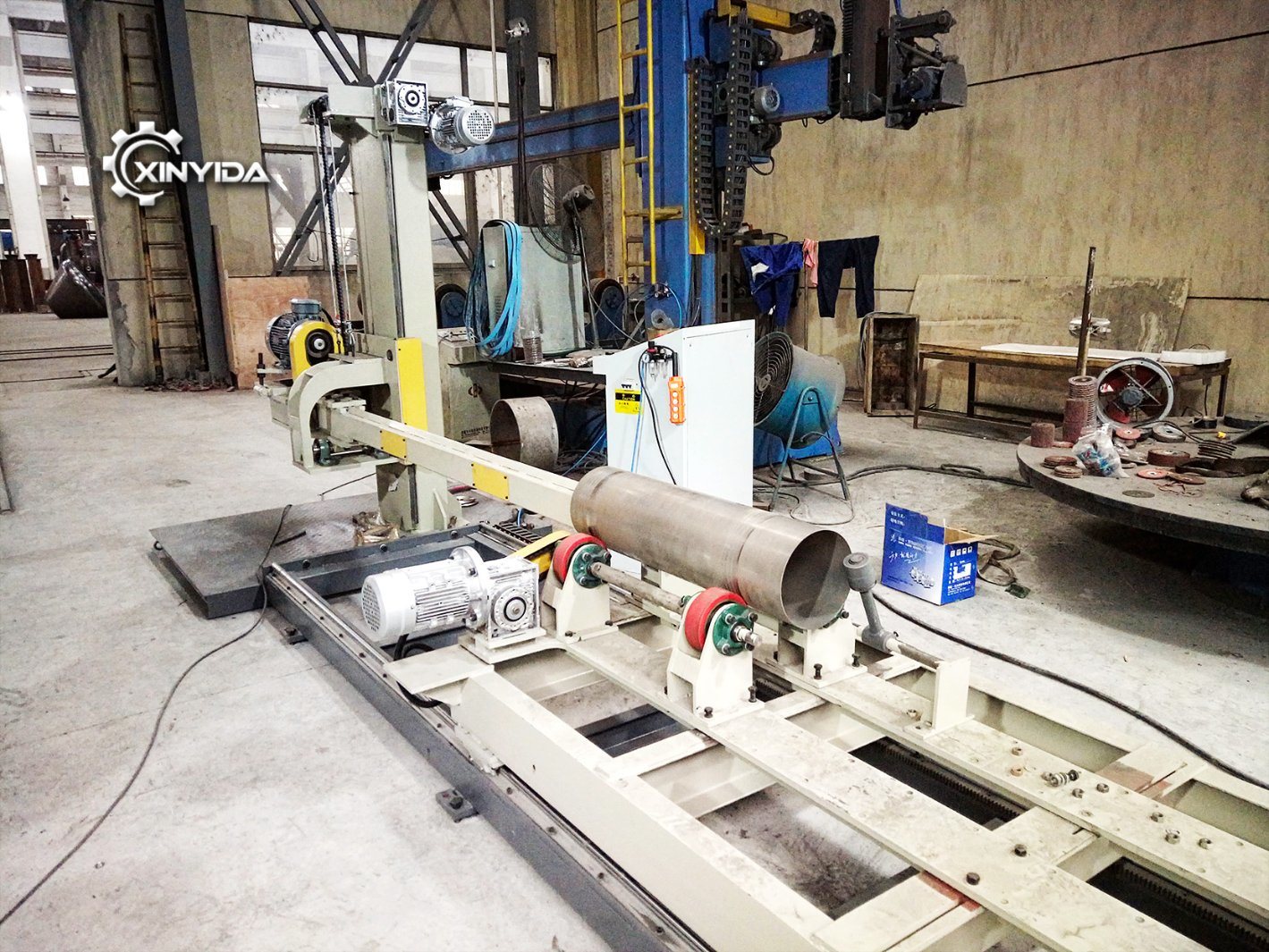

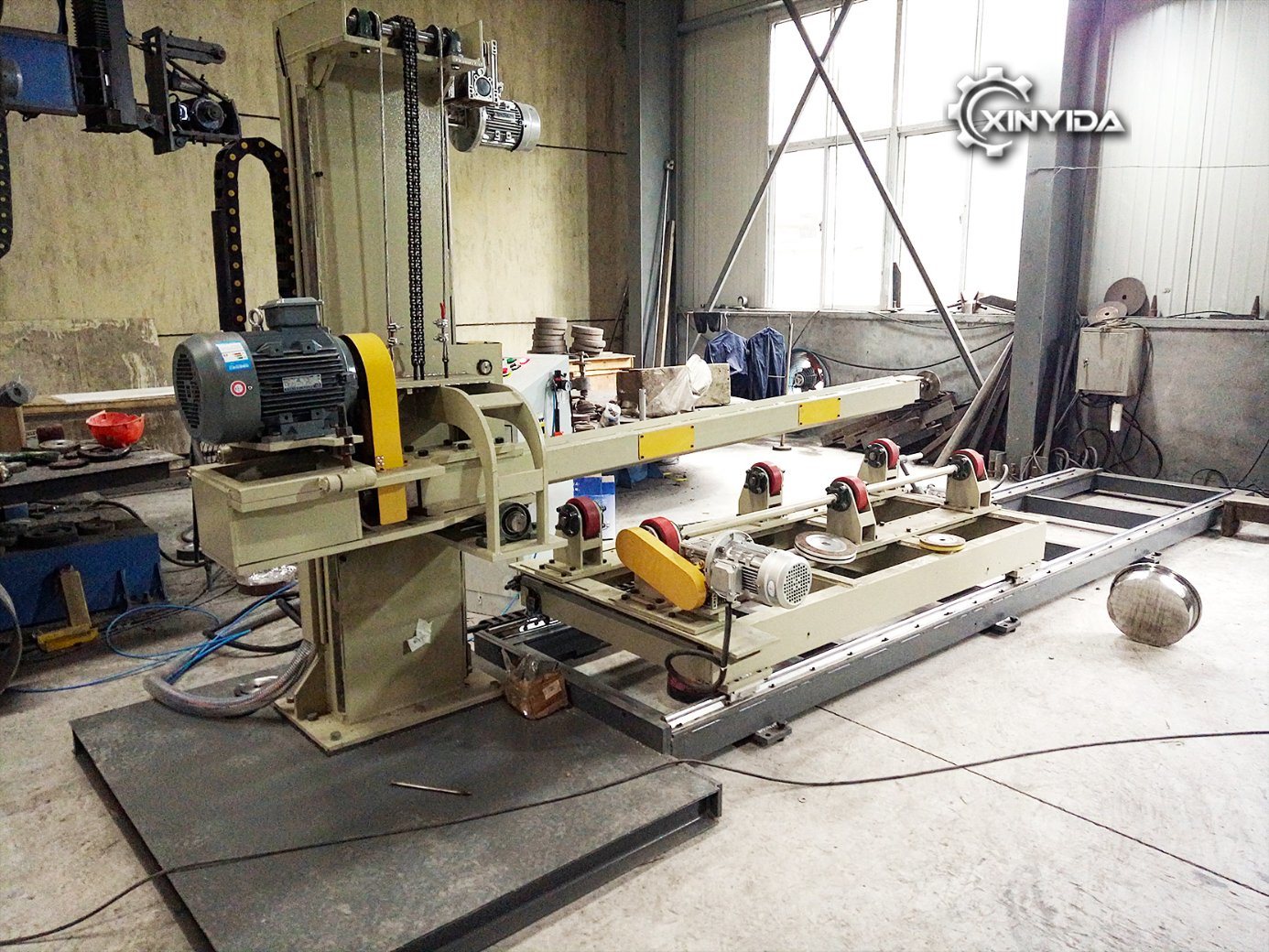

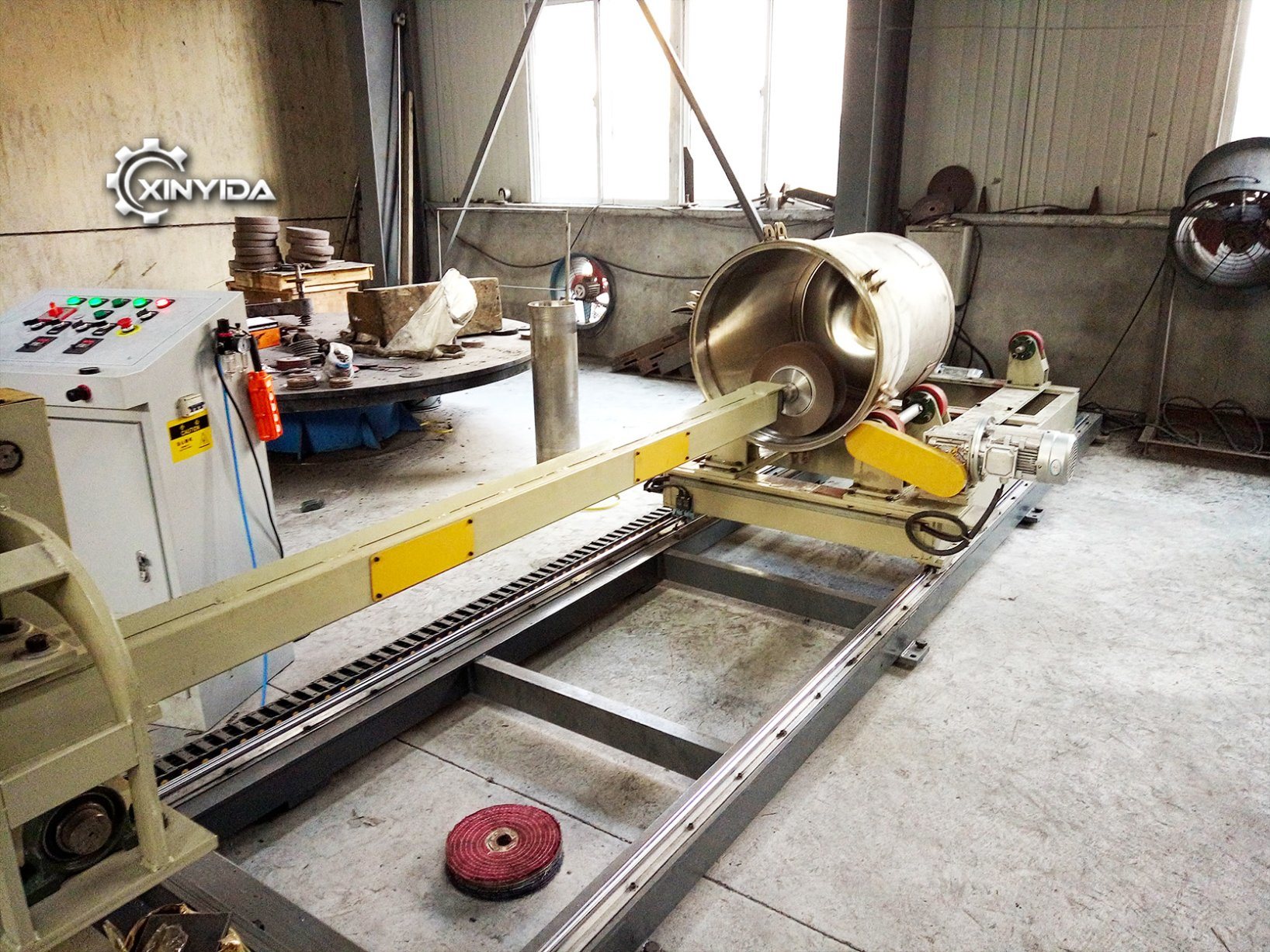

Grinding head of the automatic polishing machine frequency conversion main motor 7.5kw, reducer 4kw, support frame 3, grinding head travel maximum stroke 6000mm, support length 8m, U-turn can be polished in a 12m length round tube, with round tube chuck to adjust the size and lock, Clamping grinding wheel diameter 100×50mm.
| makine boyutu | L*W*H(in: mm): 6500*1200*1200 |
| Makina ağırlığı | 2500KG |
| Giriş gücü | 8KW |
| Kontrol sistemi | PLC |
| Grinding wheel specifaction | φ100*50mm |
| Expendable items | Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc. |
| Workpiece material | Stainless Steel & Carbon Steel |
| işleme hassasiyeti | yüzey pürüzlülüğü Ra≤0.6mikroM |
| Verimlilik üretmek | 6m2/H |
| Workpiece size | Çap | 100mm-800mm |
| Length | 1000mm-12000mm | |
| Weight | 5000KG-10000KG |
