Automatic Polishing and Grinding Machine for Inside of Small Diameter Tube

Description

INQUIRE

Grinding head of the automatic polishing machine frequency conversion main motor 7.5kw, reducer 4kw, support frame 3, grinding head travel maximum stroke 6000mm, support length 8m, U-turn can be polished in a 12m length round tube, with round tube chuck to adjust the size and lock, Clamping grinding wheel diameter 100×50mm.

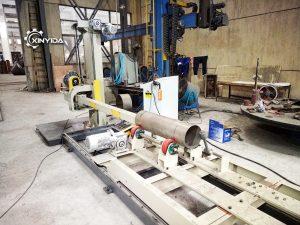

Anhui Xinyida Polishing Machine Joint Stock Co Ltd 1 1

Technical Specification

Machine dimension L*W*H(in: mm): 6500*1200*1200
Machine weight 2500KGS
Input power 8KW
Control system PLC
Grinding wheel specifaction φ100*50mm
Expendable items Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc.
Workpiece material Stainless Steel & Carbon Steel
Machining accuracy surface roughness Ra0.6μm
Producing efficiency 6m2/h



Workpiece size Diameter 100mm-800mm
Length 1000mm-12000mm
Weight 5000KG-10000KG

Product Description

  1. High efficiency
  2. Expendable items Easily Exchange
  3. Professionally designed
  4. 6m travel-long of grinding head
  5. Easily Operating
  6. Optional Dusty Collector reducing dusty pollution
