Plate Welding seam grinding machine

Description

INQUIRE

This model for polishing vertical tank welding seam. It is equipped with two sets of grinding head, welding seams can be polished at the same time. Inside grinding head equipped camera for easy operation. Grinding head move speed can be adjusted by frequency inverter. Grinding head can be exchanged.

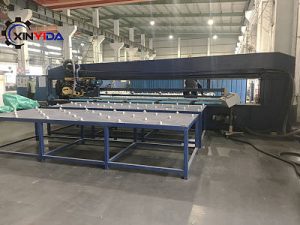

20220615190414129

Technical Specification

  • Model:XYD-HF (JY-HF)

  • Machine size:L* 4700 W* 1315 H* 1600 mm

  • Working mode: Automatic

  • The polishing length can be set according to the length of the weld seam

  • Beam move stroke 3000mm(Determine polishing length)

  • Double grinding head(upper and below grinding head)

  • Polishing belt and wheel can be exchanged.

  • Polishing motor:4 or 5.5kw  Brand: WANNA

  • VFD Brand:zhongchen/DELTA

  • Circuit part:Schneider

  • Fully enclosed dust-proof design

Polishing Ability

  • Welding seam length:3000mm

  • Plate welding seam grinding only

  • Grinding plate upper and below welding seam

Product Description

Outer Dimension 5500*5000*4300 mm
Machine Weight 3000 kg
Input Power 10 KW
Control System PLC
Produce Efficiency 6 - 12 m2/h
Polishing Material Abrasive belt, Flap wheel, Cloth wheel
Work Piece Dimension

Diameter : 750 - 4500 mm
Height : 2000 mm
Max. Loading 5T
