Metal deburring machine for small parts



Scope of application: Suitable for flat panel parts, carbon steel plates, stainless steel plates, aluminum plates, alloy plates, and various non-ferrous metals.

Technical Specification

Width: 600mm, 800mm, 1000mm, 1300mm, 1600mm
Conveying method: conveyor belt + rubber pressure rollers
Worktable adsorption method: permanent magnetic adsorption (workpiece ≥ 2020mm), vacuum adsorption (workpiece ≥ 25×50mm)
Automatic thickness setting: four-column synchronous lifting linkage, thickness digitally set on the screen and automatically positioned

Polishing Ability

  1. Feeding worktable adsorption method:

    • Powerful permanent magnetic adsorption (minimum workpiece size 220*20mm)
    • Vacuum adsorption (minimum workpiece size ≥ 50*50mm)
  2. Automatic thickness setting device:

    • Four-column linkage synchronous lifting, motorized lifting with an accuracy of ±0.01mm
  3. Full machine PLC control with touch screen parameter adjustment

Abrasive belt:

  • The abrasive belt rotates at high speed driven by the grinding motor to brush, polish, remove slag, and remove oxide scale from the workpiece surface

Product Description

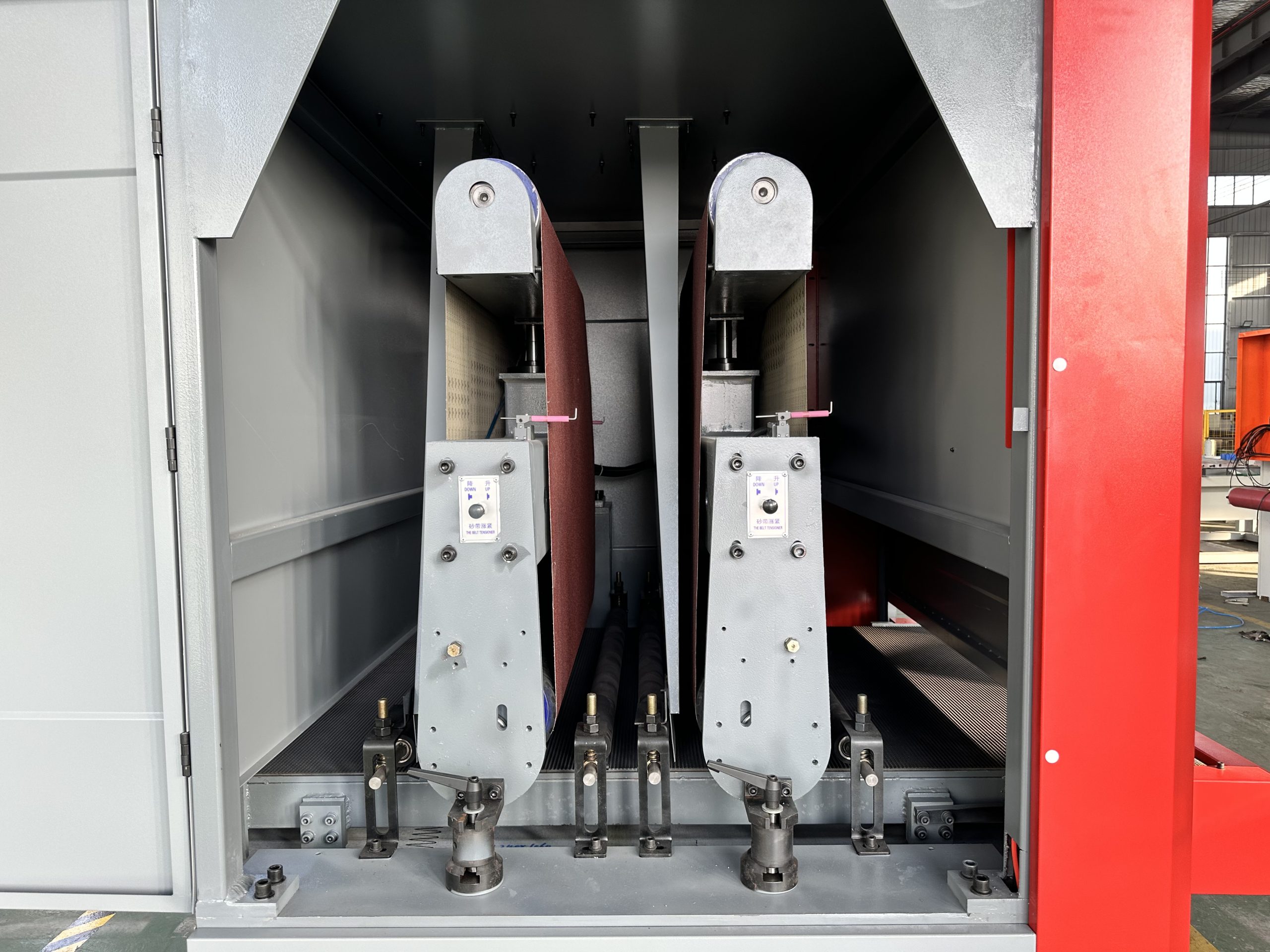

This deburring machine includes pneumatic correction;servo correction device;double abrasive belt machine structure, it it is suitable for carbon steel plate, stainless steel plate, copper plate,aluminum plate etc.,
