Heavy duty tank shell and dish head polishing machine

Description

INQUIRE

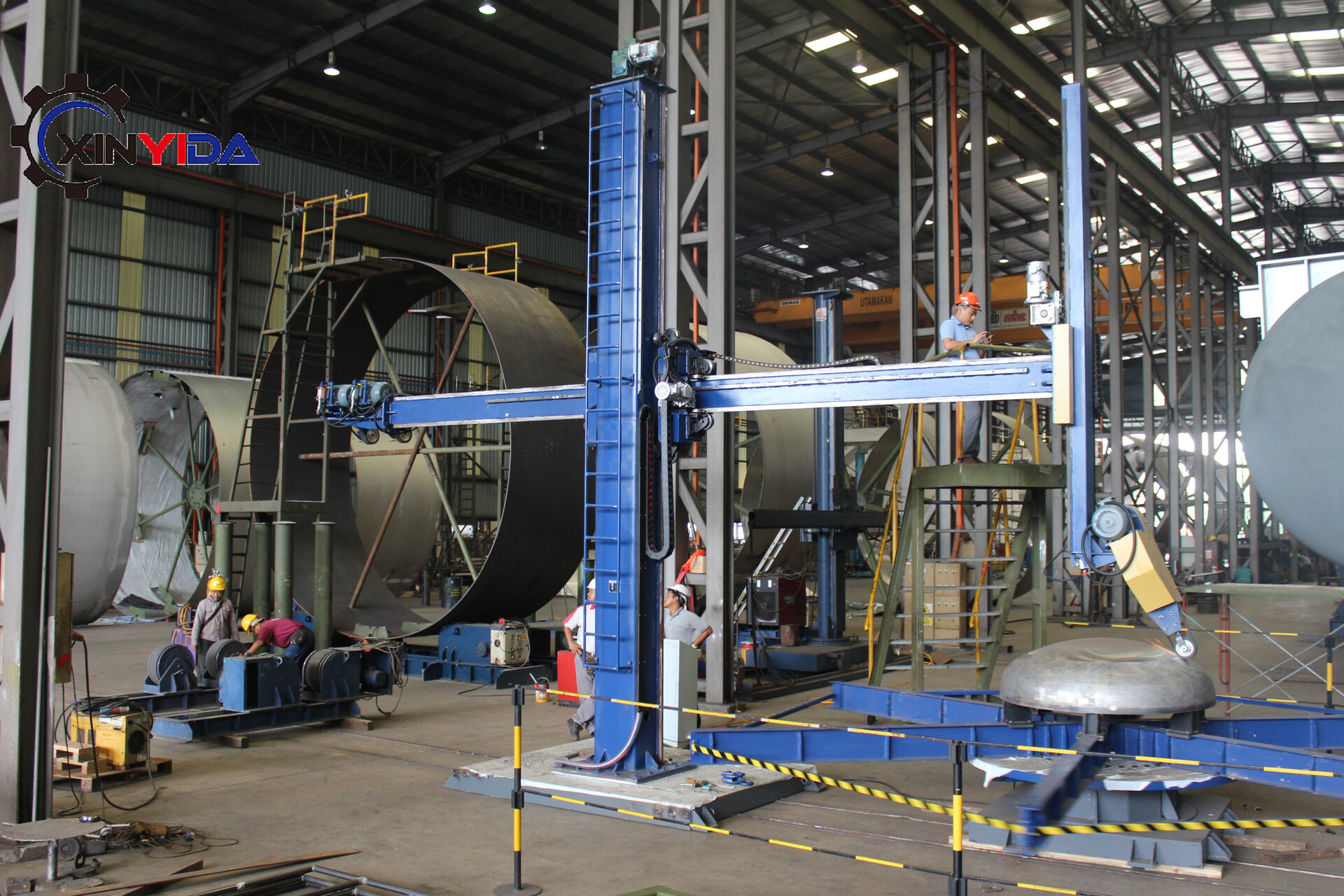

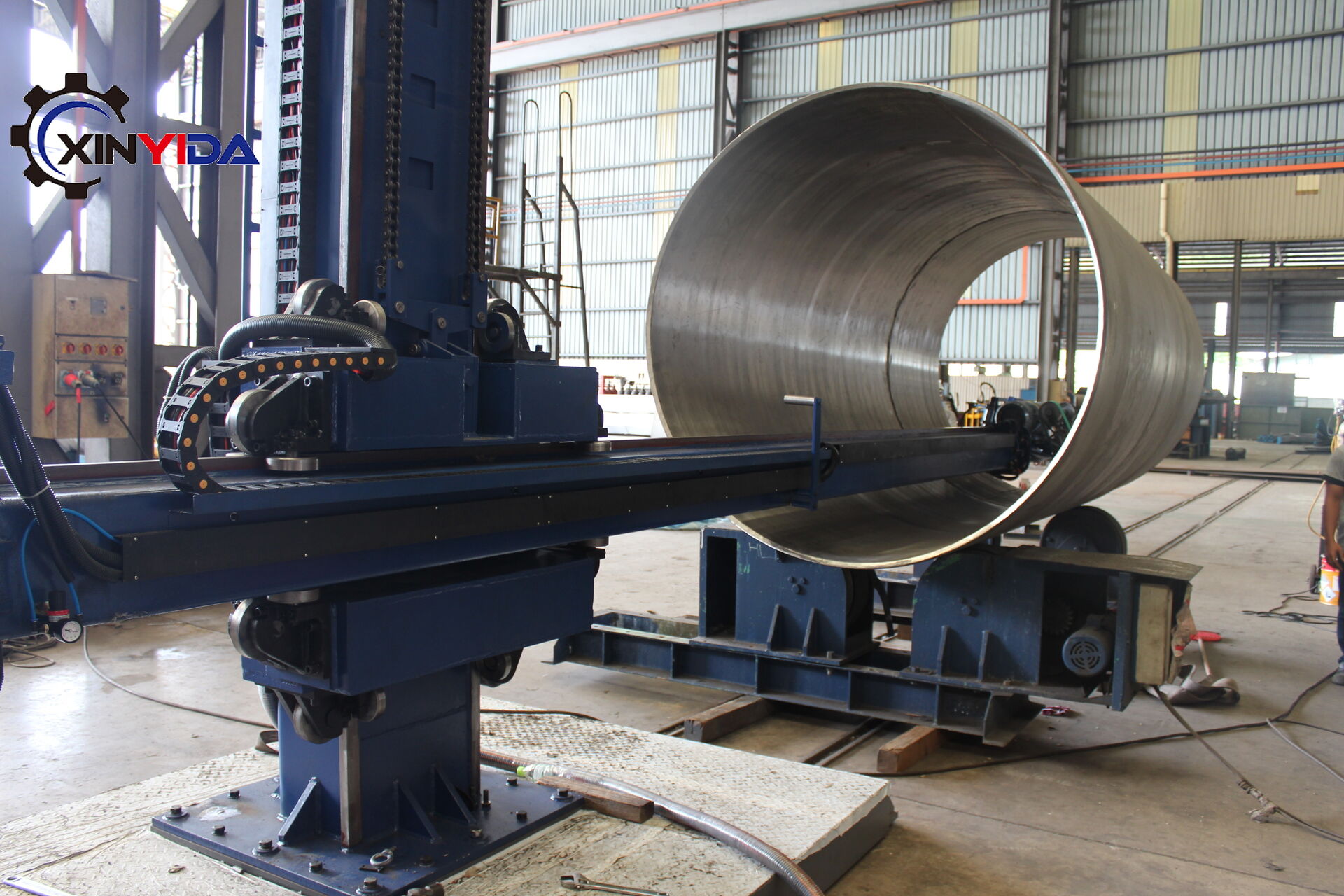

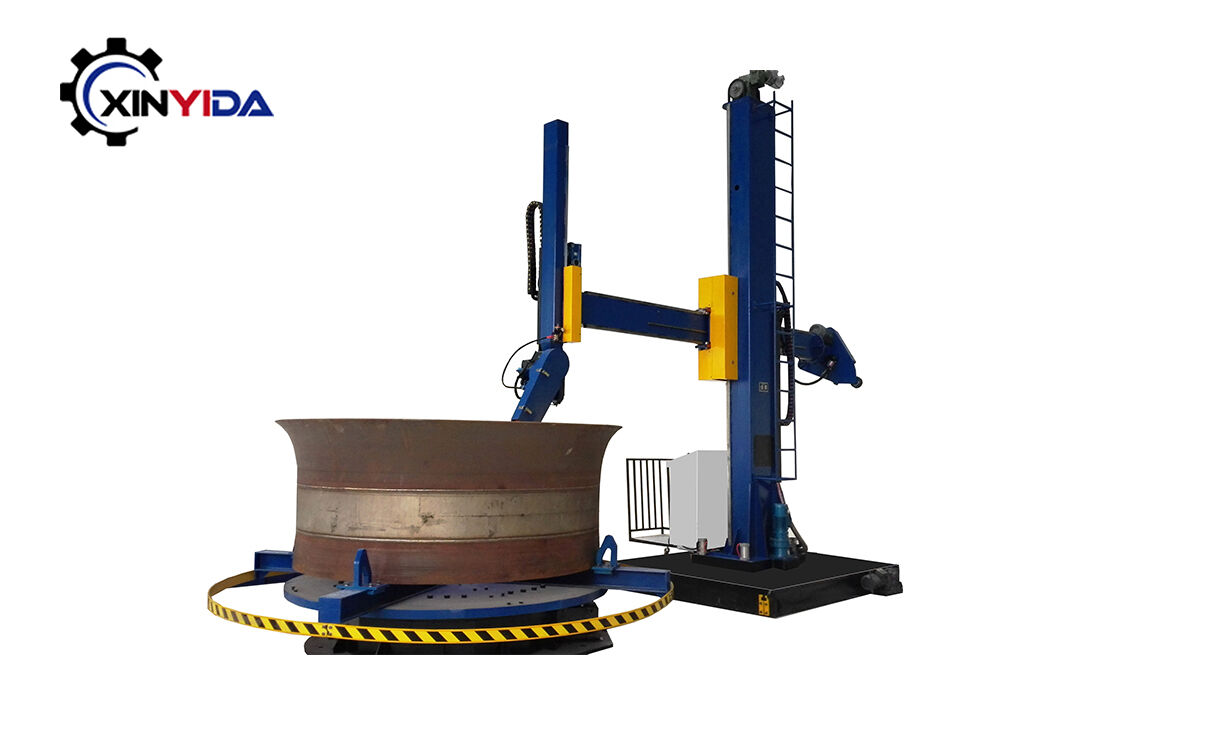

Heavy duty tank shell polishing machine is mainly used for grinding and polishing stainless steel cylinders, cones and heads, and the inner and outer walls of the joint parts. It consists of a cross main machine, a grinding head assembly, a cooling circulation system, an electric control system, and a pneumatic system workpiece turntable.

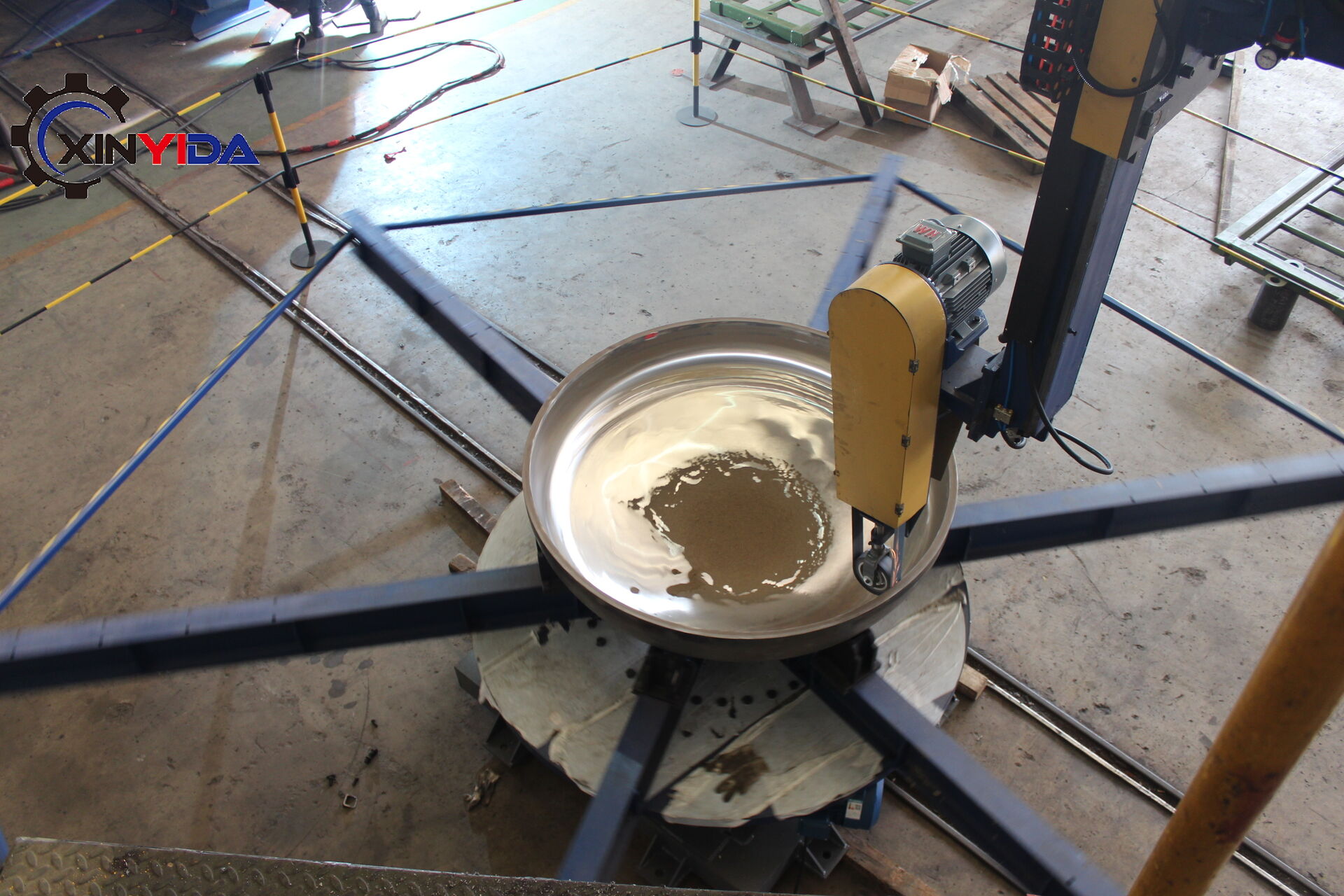

The workpiece is mounted on the turntable for rotation. The column and the beam are horizontally moved by the servo control beam, and moved up and down. The numerical control program controls the grinding head to follow the contour of the workpiece. At the same time, the grinding head spindle servo rotation technology is adopted to make the grinding head more conform to the workpiece curve. Greatly improve grinding efficiency and polishing effect.

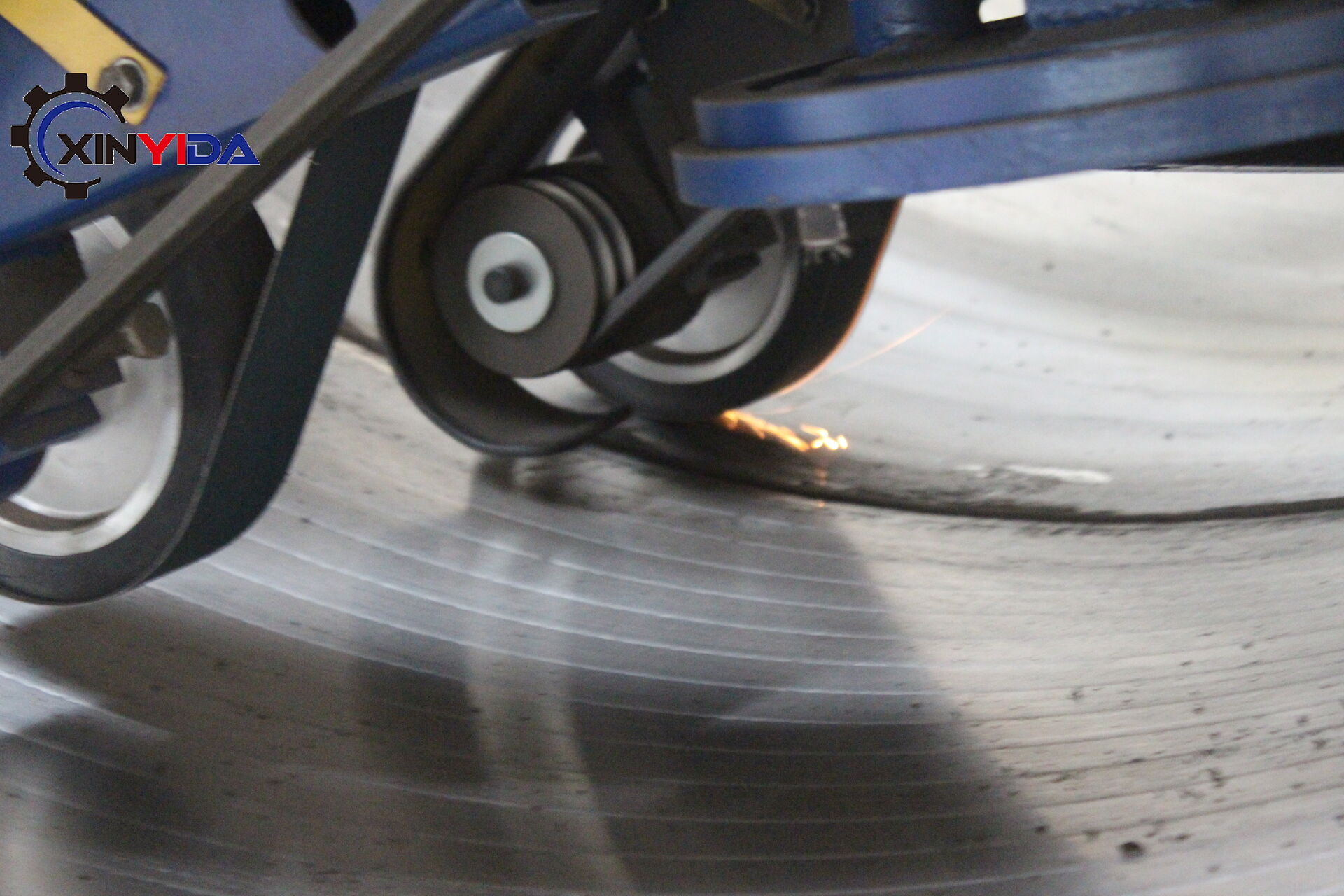

The polishing motor, turntable and other related components of the system are designed according to the wet polishing process. The wet abrasive belt polishing causes the grinding dust to flow out of the surface of the workpiece under the flushing of water, and the water can be recycled through simple precipitation and filtration to achieve zero pollution. The grinding head spindle servo rotation technology improves the grinding efficiency and improves the surface polishing effect.

Technical Specification

  • Model:XYD-CZJ (JY-CZJ)

  • Working mode: Semi-automatic/Full Automatic

  • Beam move stroke 2500-5000 mm(Determine polishing length)

  • Polishing belt and wheel can be exchanged.

  • Polishing motor:4 or 5.5kw  Brand: WANNA

  • VFD Brand:zhongchen/DELTA

  • Circuit part:Schneider

  • Machine color: Grey,Blue,Red,Orange

Polishing Ability

  • Tank diameter:800-5000mm

  • Tank length:10000mm

  • Tank weight:optional

  • Dished end diameter:500-7000mm

  • Dished end Hight:3000mm

  • Dished end weight:optional

  • Both Tank and dished ends polishing

  • Polishing tank shell and dished end inside and outside

  • Get matt,bright and mirror finish

  • Efficiency:10-12㎡/h

  • Tank and dished end cannot be polished at the same time
