Dish Head Polishing Machine with CNC System

Description

INQUIRE

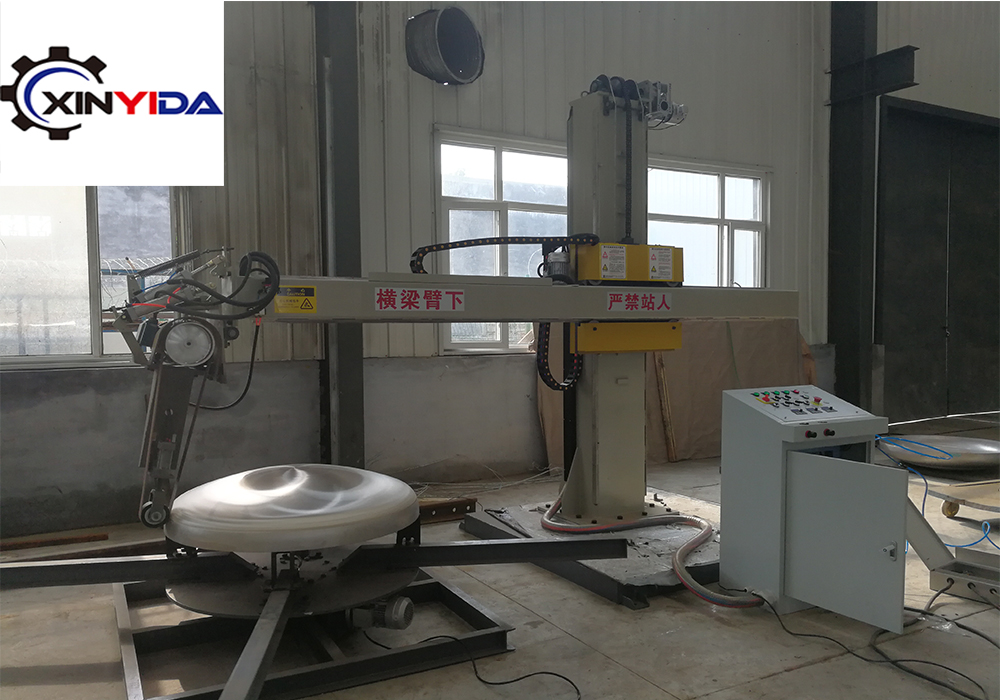

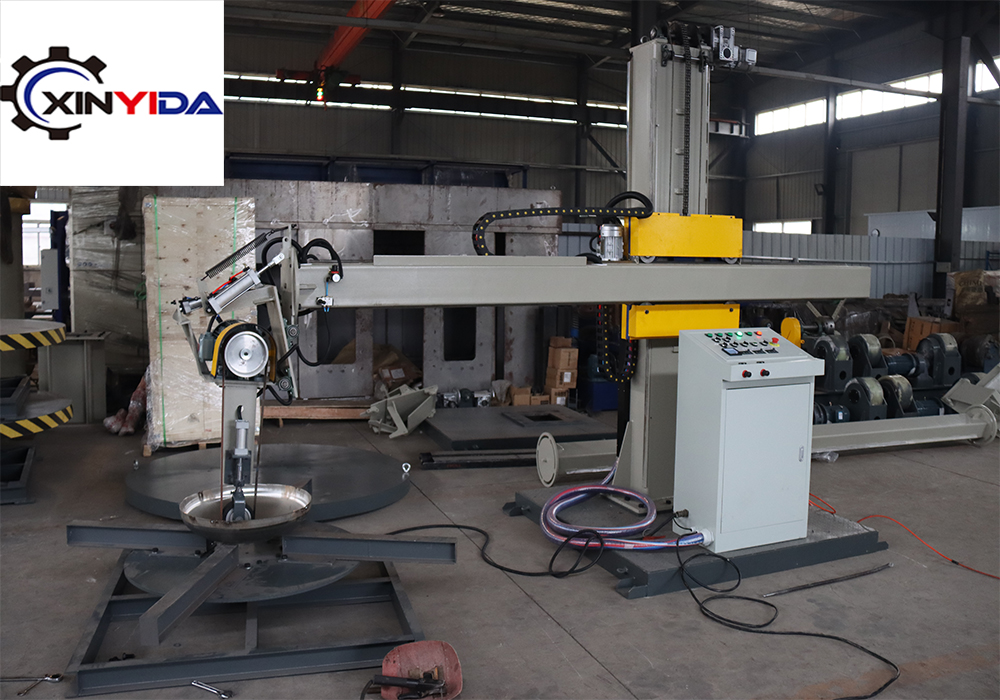

Dish Head Polishing Machine with CNC SystemDshed ends polishing machine

🌎Stainless steel dish head polishing machine designed by XINYIDA Polishing Machine.
🌏Suitable for Dish end and Pressure Vessel φ800mm-3000mm inside and outside buffing.
     Optional  turntable load range: 1-20 tons.
🌏Dished ends Finishes.
Highly reflective surface obtained with the the combination of different abrasive belts. Minimal grit lines.
Used where product-contact surfaces are critical. RA Range: <0.2.

Metal polishing is a critical step in the manufacturing process for a variety of products, ranging from car parts to jewelry. While it can be done by hand, using a metal polishing machine can offer significant benefits in terms of efficiency, consistency, and quality.

As a manufacturer, you understand the importance of producing high-quality products that meet the needs and expectations of your customers. Using a metal polishing machine can significantly improve efficiency. Hand polishing can be a time-consuming and labor-intensive process, particularly when it comes to larger or more complex objects. A polishing machine, on the other hand, can complete the process much faster and with less effort. This can increase the throughput of the manufacturing process, enabling manufacturers to produce more products in less time

Technical Specification

  • Model:XYD-2

  • Working mode: Semi-automatic

  • Beam move stroke 3000mm(Determine polishing diameter)

  • Polishing belt and wheel can be exchanged.

  • Polishing motor:4 or 5.5kw  Brand: WANNA

  • VFD Brand:zhongchen/DELTA

  • Circuit part:Schneider

Polishing Ability

Dished end diameter:400-3000mm

Dished end Hight:800mm

Dished end weight:optional

Dished end shell polishing onlydish

Polishing Dished end inside and outside

Get matt,bright and mirror finish

Efficiency:10-12㎡/h
