Heavy Duty Metal Deburring Machine
وصف
استعلام-
-
المواصفات الفنية
?Processing width: 600mm, 800mm, 1000mm, 1300mm, 1600mm
?Processing thickness: 0.5-100mm?Feeding worktable adsorption method:
- Powerful permanent magnetic adsorption (minimum workpiece size 220*20mm)
- Vacuum adsorption (minimum workpiece size 250*50mm)
- Semi-magnetic and semi-vacuum adsorption
?Automatic thickness setting device: Four-column linkage synchronous lifting, motorized lifting with an accuracy of ±0.01mm
?Processing speed:
- Conveyor speed: 0.3m-9m/min (variable frequency adjustable)
- Wire wheel linear speed: 5m/s-20m/s (variable frequency adjustable)
?Full machine PLC control with touch screen parameter adjustment
?Equipped with wet industrial dust collector and flame-retardant dust collector for safe and environmentally friendly dust processing.
-
القدرة على التلميع
Equipment applications:

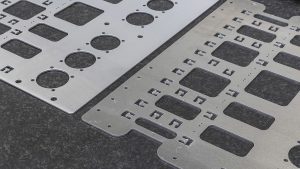

- Solution for part deburrs of lasercutting, punching, flame cutting
- Edge rounding finishingHairline polishing
- تلميع خط الشعر
-
وصف المنتج
This is a high-end heavy-duty machine exclusively developed by our factory. It includes dual abrasive belts, universal wheels, and a polishing wheels, ensuring a high surface finish for customers. When the polishing wheel is not rotating, it can also achieve a brushed effect. One machine meets all requirements.
