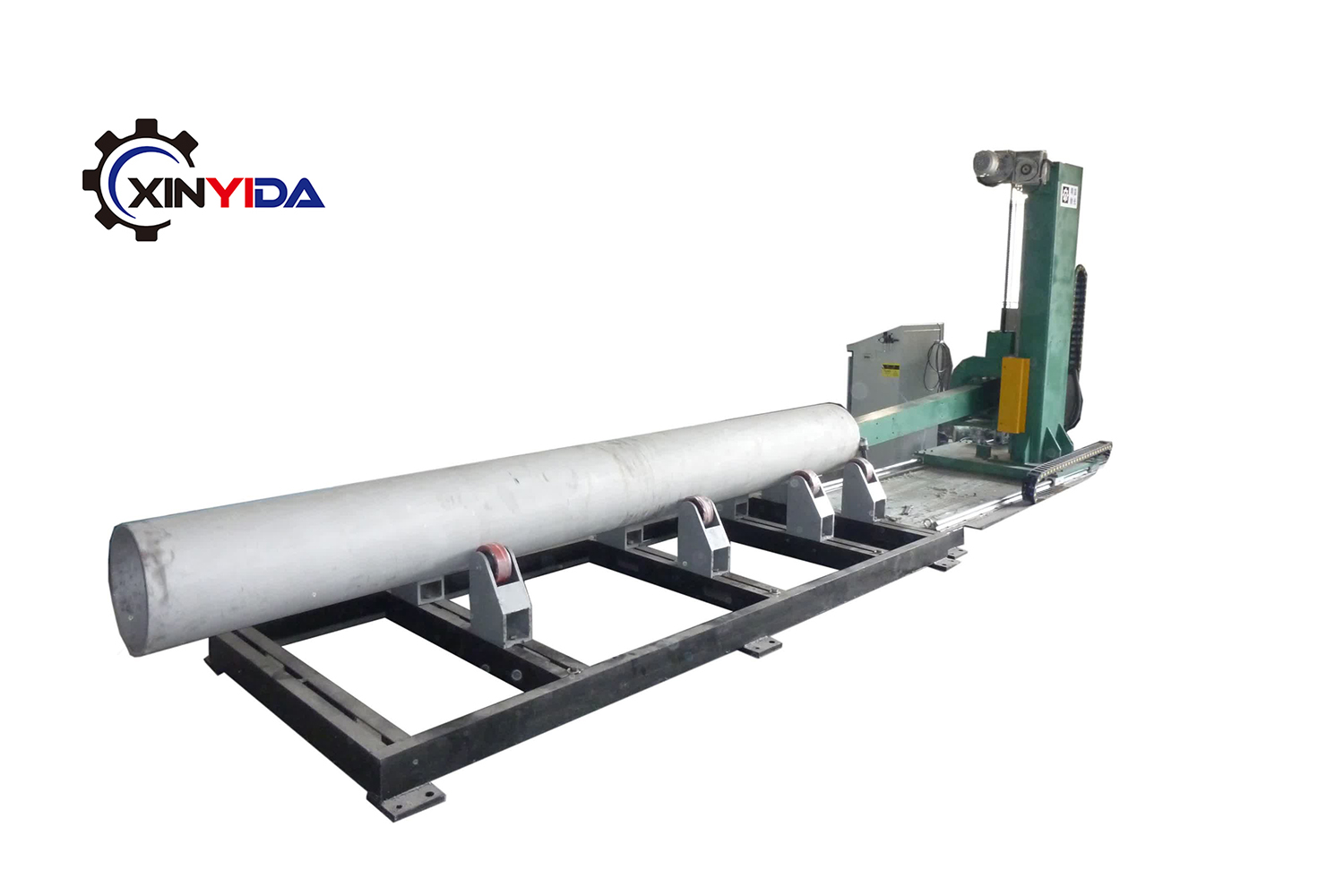

Inner Diameter Polishing Machine for Pipe Polishing with Length of 2.5m

Tanım

SORMAK

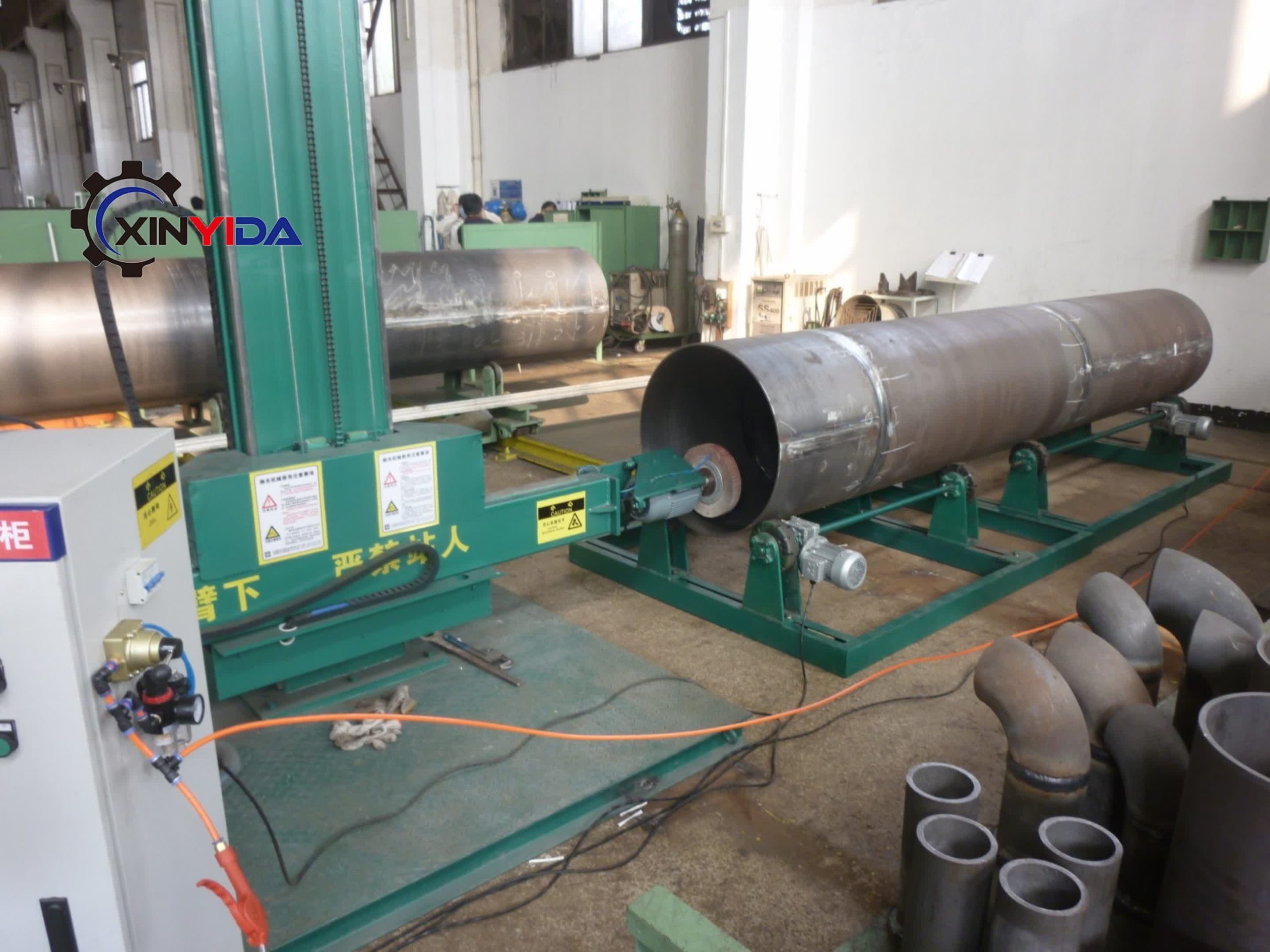

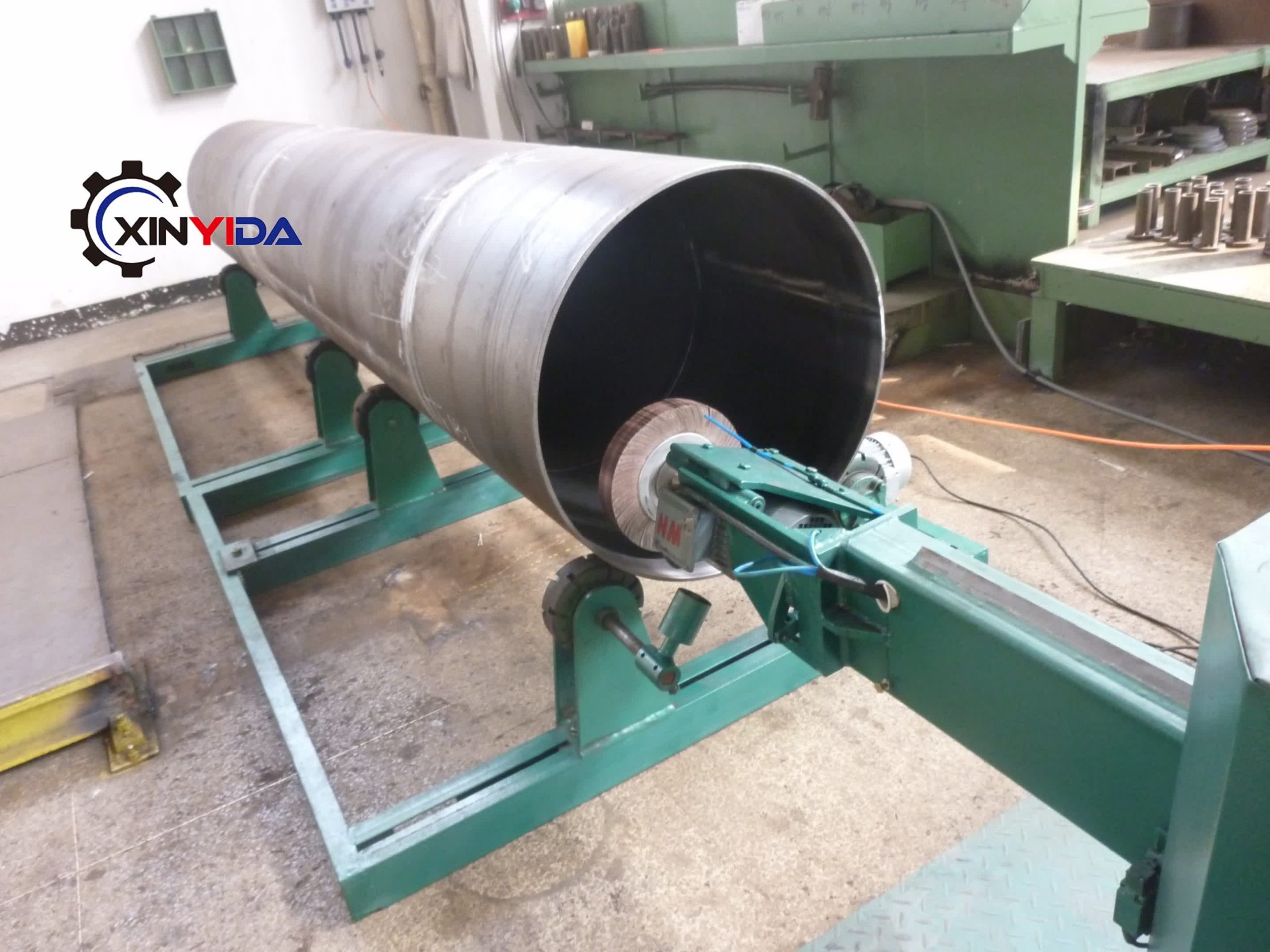

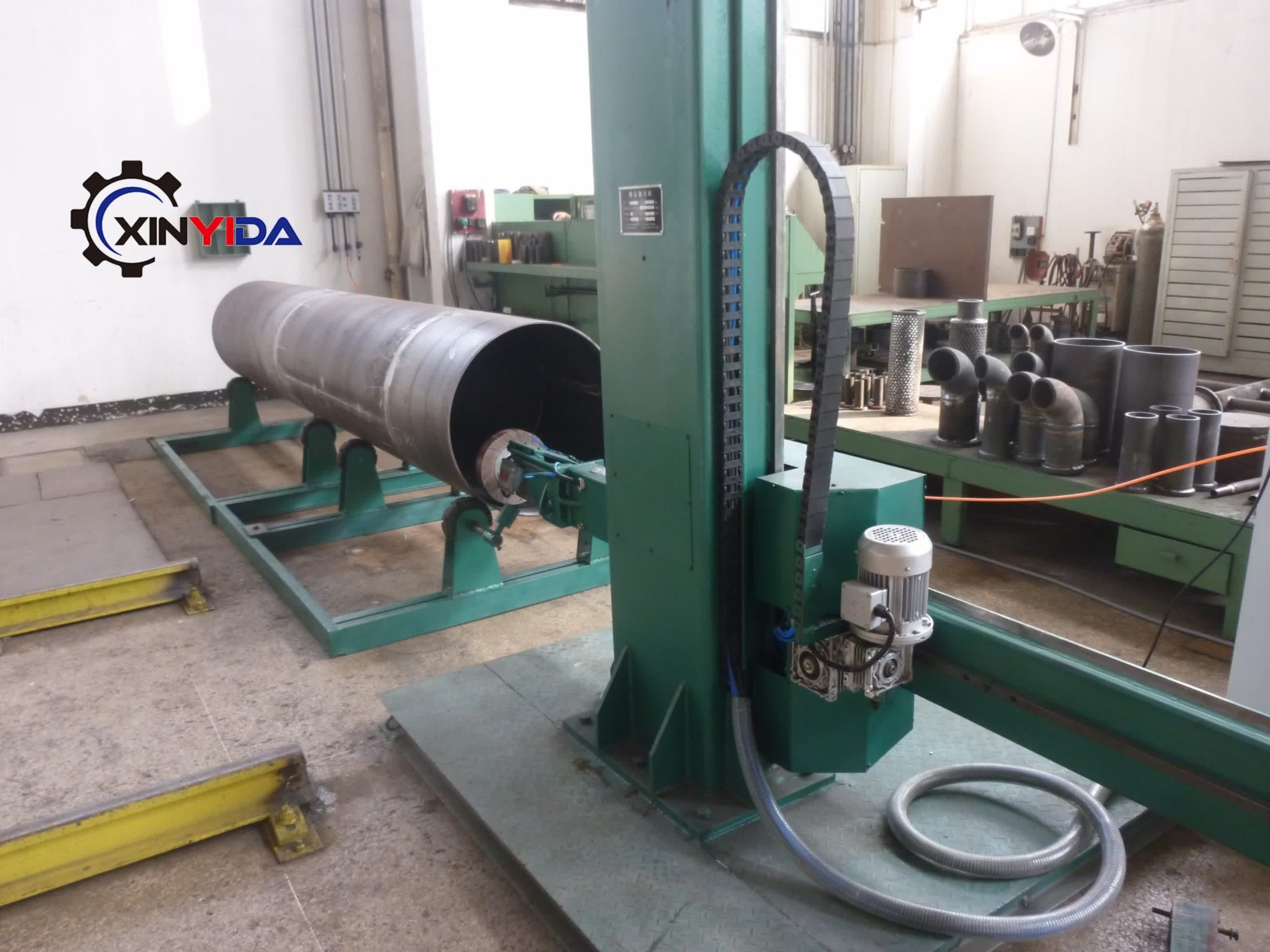

Use thousand impeller or cloth wheel, hemp wheel. The beam is adjusted up and down to adjust the position of the grinding head. The beam is fixed to the left and right, the base of the equipment is travelling. The motor is placed at back of machine. The inner joint of the beam is connected, the rear end has a cylinder hinge to realize the floating, and the front part is mounted with the grinding head to polish.
Parlatma Yeteneği

makine boyutu L*W*H(in: mm): 3500*1600*2000

Rotary table dimension L*W(in: mm): 2000*1500

Makina ağırlığı 2500KG

Giriş gücü 5KW

Kontrol sistemi PLC/CNC

Expendable items Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc.

işleme hassasiyeti yüzey pürüzlülüğü Ra≤0.4mikroM

Verimlilik üretmek 6m²/H
Ürün Açıklaması Use thousand impeller or cloth wheel, hemp wheel. The beam is adjusted up and down to adjust the position of the grinding head. The beam is fixed to the left and right, the base of the equipment is travelling. The motor is placed at back of machine. The inner joint of the beam is connected, the rear end has a cylinder hinge to realize the floating, and the front part is mounted with the grinding head to polish.

makine boyutu	*LWH(in: mm): 350016002000*
Rotary table dimension	*LW(in: mm): 20001500*
Makina ağırlığı	2500KG
Giriş gücü	5KW
Kontrol sistemi	PLC/CNC
Expendable items	Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc.
işleme hassasiyeti	yüzey pürüzlülüğü Ra≤0.4mikroM
Verimlilik üretmek	6m²/H
