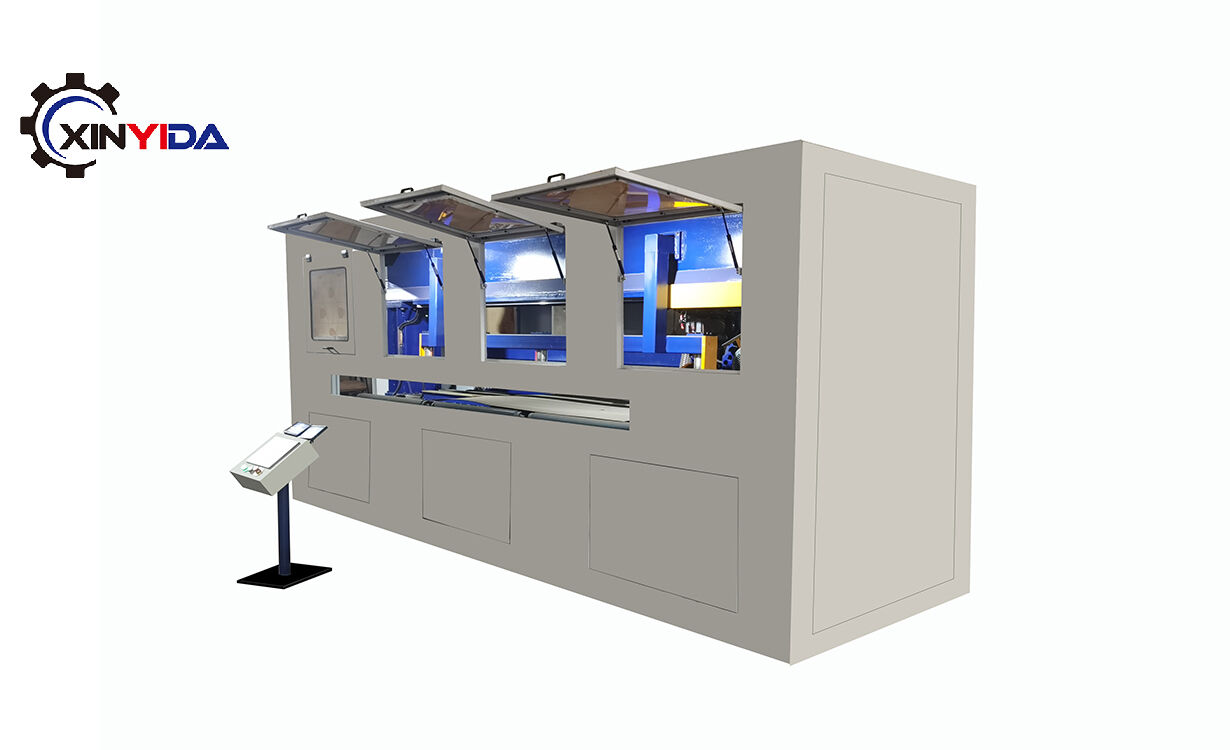

This model for polishing vertical tank welding seam. It is equipped with two sets of grinding head, welding seams can be polished at the same time. Inside grinding head equipped camera for easy operation. Grinding head move speed can be adjusted by frequency inverter. Grinding head can be exchanged.

• Model:XYD-HF (JY-HF)

• Machine size：L* 4700 W* 1315 H* 1600 mm

• Working mode: Automatic

• The polishing length can be set according to the length of the weld seam

• Carrera de movimiento del haz 3000 mm (Determinar la longitud de pulido)

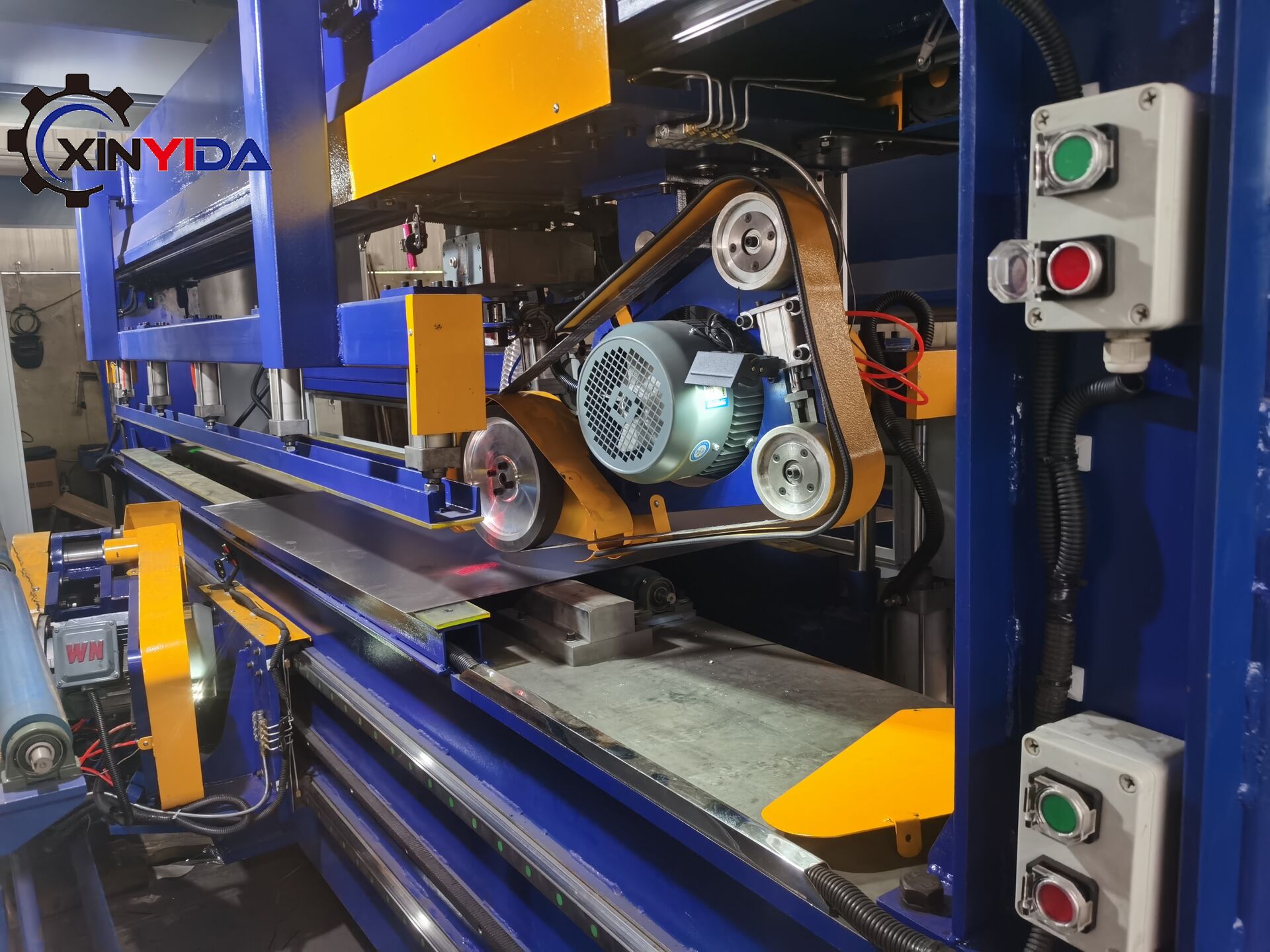

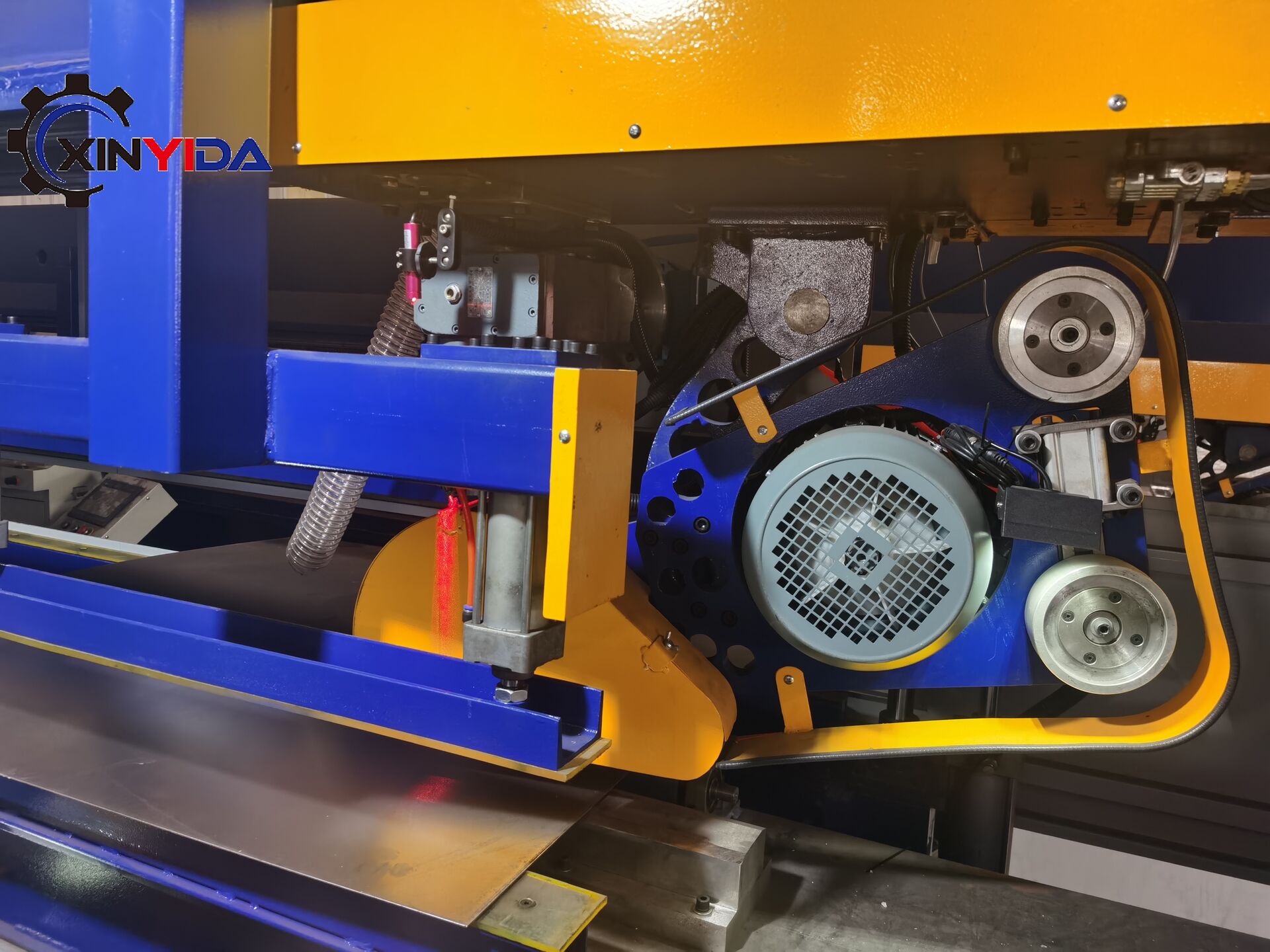

• Double grinding head(upper and below grinding head)

• La correa y la rueda de pulido se pueden cambiar.

• Motor de pulido: 4 o 5.5kw Marca: QUIERO

• Marca VFD: zhongchen/DELTA

• Parte del circuito: Schneider

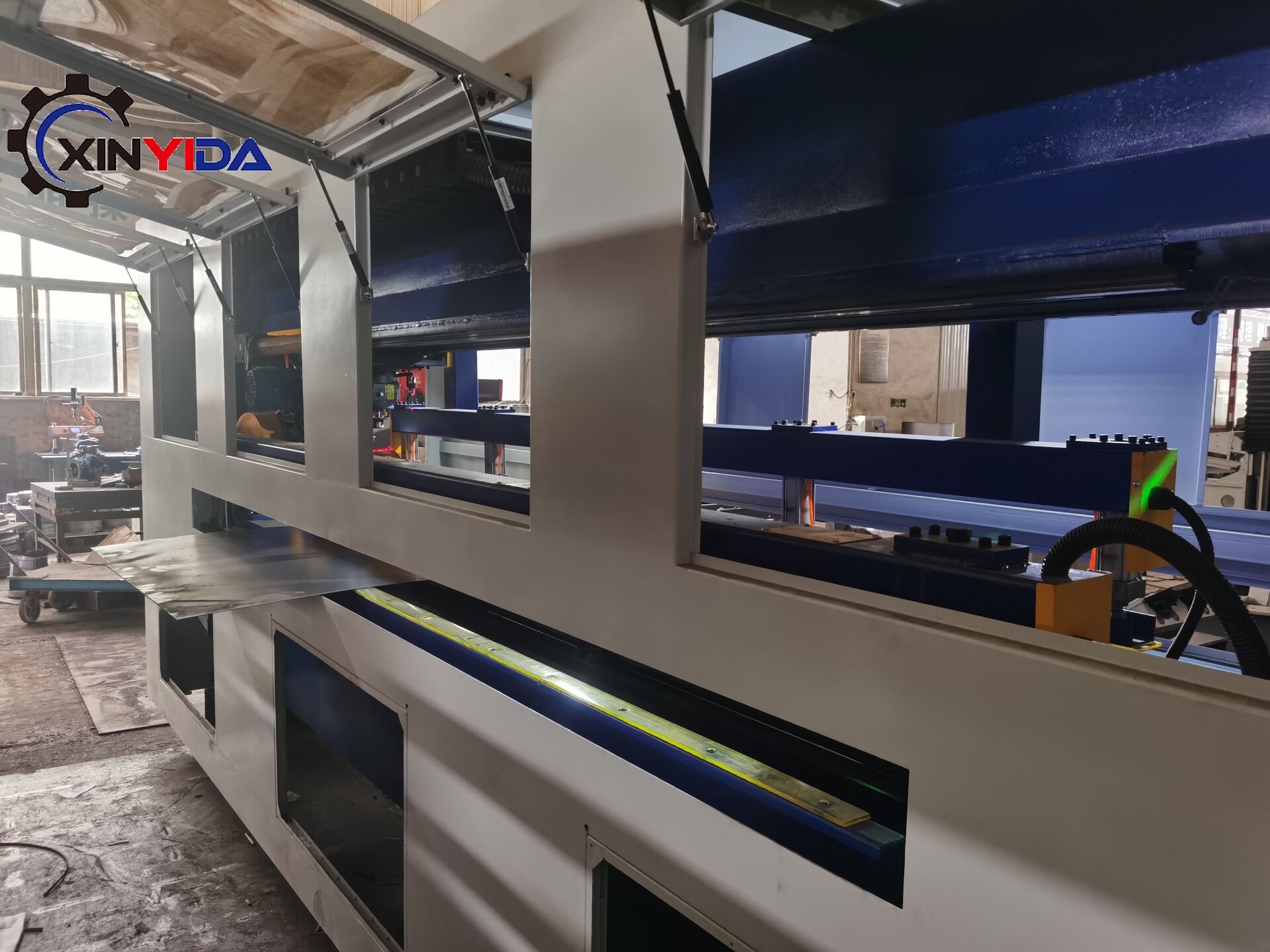

• Fully enclosed dust-proof design

• Welding seam length:3000mm

• Plate welding seam grinding only

• Grinding plate upper and below welding seam
